NGX-1 Wiring Connections

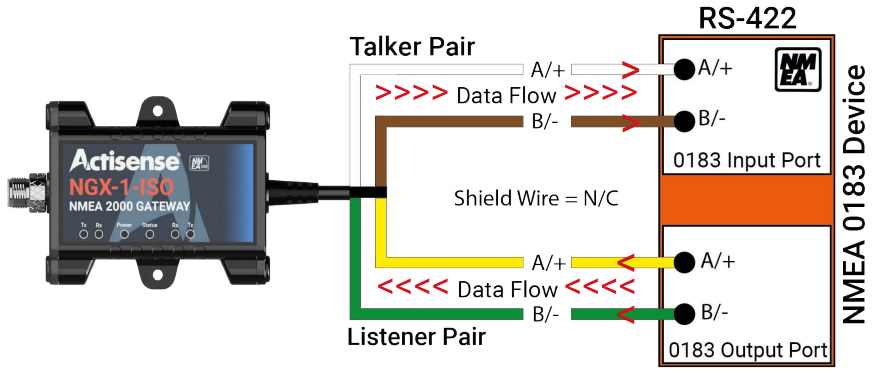

There is a diagram on page 11 of the NGX-1 User Manual that illustrates the connections from the NGX-1 to an NMEA 0183 device.  The same diagram can be seen below.

NGX-1 connections to NMEA 0183 Talker and Listeners



To clarify these instructions:
The yellow and green pair are the NGX-1 Listener pair (RX) for connecting to the output of an NMEA 0183 Talker (TX).
The white and brown pair are the NGX-1 Talker pair (TX) for connecting to the input of NMEA 0183 Listener (RX).

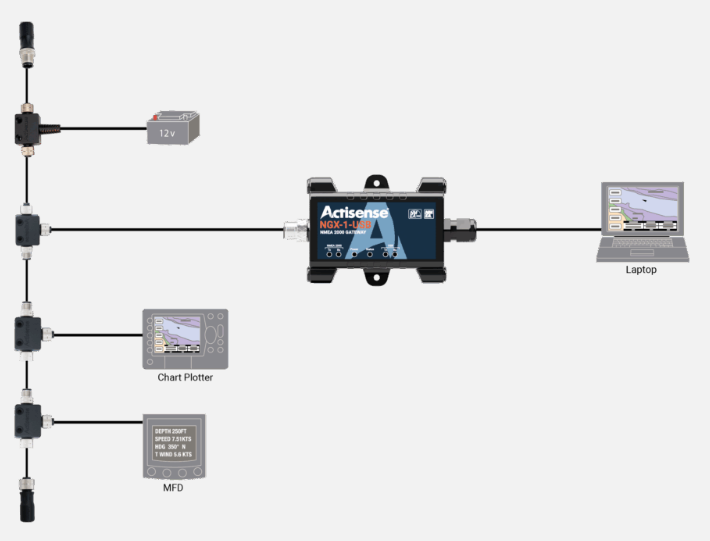

NGX-1 connection to NMEA 2000 network

The diagram below provides a good example of how the NMEA 2000 network should be designed and how the NGX-1 fits in between your NMEA 0183 device(s) and the network.

For more information on NMEA 0183/NMEA 2000 and how it works, please download our free guides here: https://actisense.com/actisense-hub
