A2K-T-MFF Micro T-Piece
Quality engineered connectors shaped to allow easy and secure connections.
Two female and one male connector allow easy connected to Actisense NMEA lite cable assemblies even when field fit connectors are used, making it a totally unique T-piece.

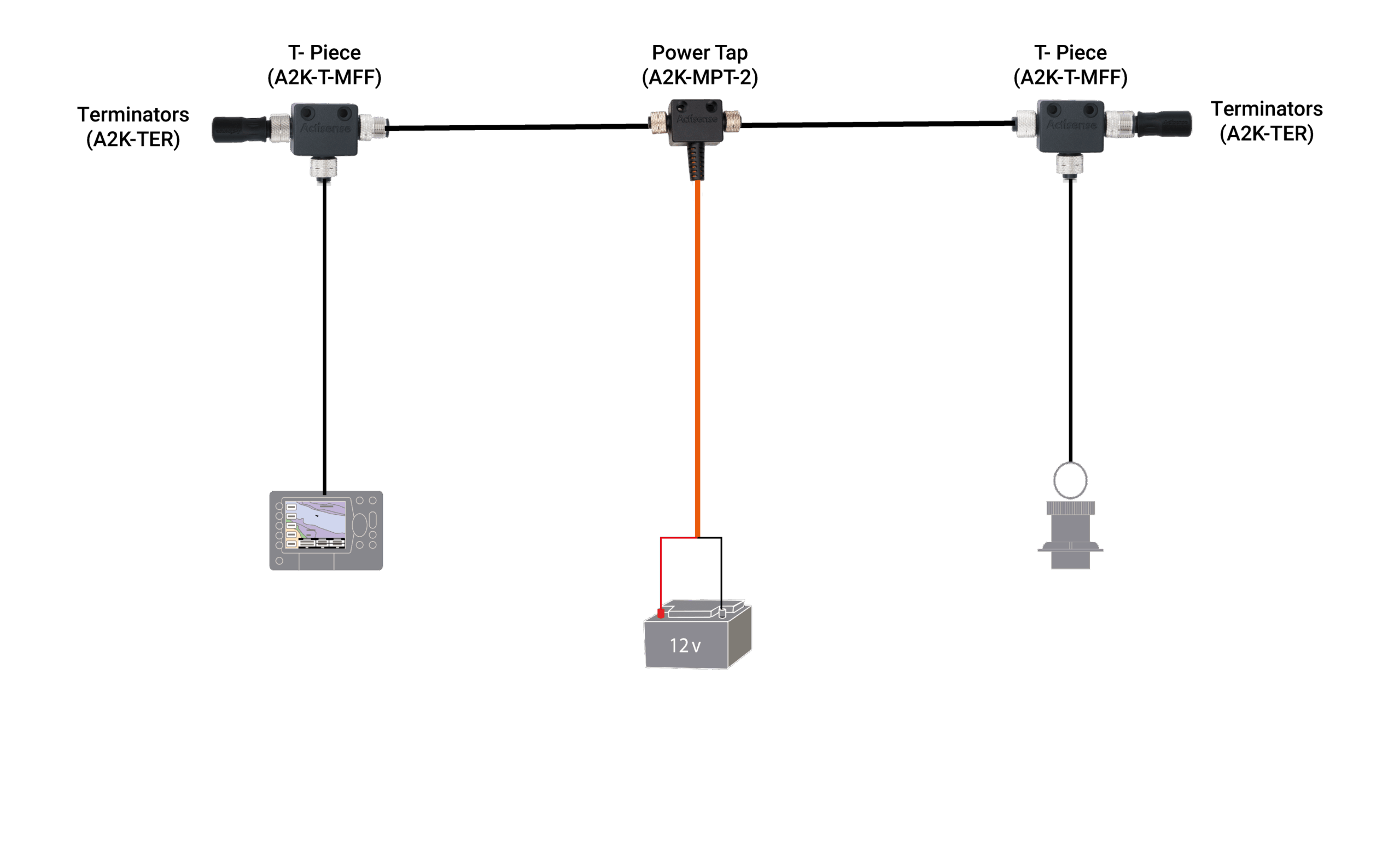

The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
To order the Micro T-Piece, please use product code: A2K-T-MFF.
| Electrical | |
| Rated Current | 4A |
| Rated Voltage
|
60VDC
|
| Mechanical | |
| Male Contact | Brass, gold plated |
| Female Contact | Phosphor bronze, gold plated |
| Contact Carrier | PA66 (30% Glass filled), black |
| Contact Polarisation | Standard M12 -“A”- polarisation |
| Mating Thread | M12 |
| Screw Cap | Brass, nickel plated |
| O-Ring Seal | Rubber, black |
| Housing | PVC, black |
| Weight
|
47g
|
| Approvals and Certifications | |
| NMEA 2000 Approved | |
| RoHS Compliant | |
| UL Certified (UL1277) | |
| Protection | IP67 (when mated) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
Actisense is dedicated to providing up-to-date software and resources for our products. Here are some useful tools and documentation to help you make the most of your product:
