NGW-1 NMEA 2000® Gateway NMEA 2000® Gateway

Hook up to NMEA 2000 whilst keeping currently installed NMEA 0183 devices.

The NGW-1 provides an uncomplicated way to link between a boat’s data networks and converts NMEA 0183 data into NMEA 2000 data and vice-versa.

Multiple NGW-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network, using the network as a means of combining and transferring all data from one place to another.

Where To Buy

NGW-1-ISO NMEA 2000 Gateway

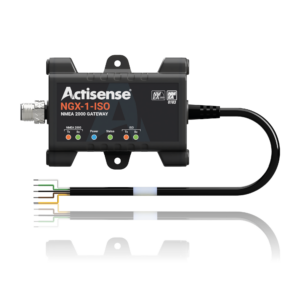

NGW-1-ISO NMEA 2000 Gateway

NGW-1-STNG NMEA 2000 Gateway

NGW-1-USB NMEA 2000 Gateway

STNG Cable

NMEA 2000 Certified logo

Fully NMEA 2000 Certified

The NGW-1 has the largest range of conversions available on the market. To see a full up to date list of the conversions the various configurations can handle, please click here.

The Actisense NMEA Reader software utility allows the NGW-1 user to view and understand (in detail) the translated NMEA 0183 sentences output by an NGW-1 directly.

Ordering information
(Part number/s)

The NGW-1 is available to purchase in a variety of options:

NGW-1-ISO is the standard option. With an opto-isolated input and ISO-Drive output for direct NMEA 0183 device bi-directional connection.

NGW-1-ISO-AIS is the NMEA 0183 AIS option that enables the conversion of NMEA 0183 AIS data to its equivalent in NMEA 2000. This provides an ‘out of the box’ solution for quick installation with no configuration required.

NGW-1-USB is the NMEA 0183 USB (1.1 and 2.0) interface for bi-directional connection to a PC for use with NMEA 0183 software.

Every option of the NGW-1 is available with the SeaTalkNG to NMEA 2000 adaptor Cable – STNG-A06045. The SeaTalkNG to NMEA 2000® adaptor cable (STNG-A06045) is not available as a standalone product and must be bought as part of a bundle.

FEATURES

  • Fully isolated NMEA 0183 incorporating ISO-Drive™ technology
  • Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
  • Supports Fast Heading at 10Hz
  • Up to 230,400 baud data transfer rate
  • Integrated 1.5m drop cable
  • Diagnostic receive LEDs



BENEFITS

  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allow NMEA 0183 devices to receive vital NMEA 2000 data
  • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
  • Reliable, renowned bi-directional conversion engine
  • Supports a wide range of conversions including AIS
  • Easily configurable using Actisense Toolkit
Power Supply (ISO, ISO-AIS & STNG Variants)
Supply Voltage (NMEA 2000 Port)9.5 to 35V DC
Supply Current (NMEA 2000 Port)35mA @ 12V DC, Max 50mA
Load Equivalent Number (LEN)



1



Power Supply (USB Variants)
Supply Voltage (NMEA 2000 Port)9 to 29V DC
Supply Current (USB Host Port)85mA @ 5V DC
Supply Current (NMEA 2000 Port)15mA @ 12V DC, Max 50mA
Load Equivalent Number (LEN)



1



NMEA 2000 Port (All Variants)
CompatibilityFully NMEA 2000 certified
Galvanic IsolationRefer to ‘ISO port’ or ‘USB port’
Speed / Baud Rate250kbps
ConnectivityM12 Male (A polarised) connector moulded on cable
Cable Length NMEA 20001.5m
Cable Length STNG Adapter



0.4m (1.9m with NMEA 2000 cable connected)



ISO Port (NMEA 0183 port – ISO, ISO-AIS & STNG Variants)
CompatibilityFull NMEA 0183, RS232 & RS422 compatible. RS485 Listener compatible
Galvanic Isolation2500V input to ground, 1500V output to ground using ISO-Drive
Speed/Baud Rate4800 to 115200 Baud
Output Voltage Drive>= 2.1V (differential) into 100Ω
Output Current Drive20mA max.
Output ProtectionShort circuit and ESD
Input Voltage Tolerance-15V to +15V continuous -35V to +35V short term (< 1 second)
Input ProtectionCurrent limited and overdrive protection to 40VDC
Connectivity5mm stripped and tinned wire
Cable Length



1.5m



USB Port (USB Variant)
CompatibilityUSB 1.1, 2.0 and 3.0
Galvanic Isolation2500V input to ground
Speed / Baud Rate4800 to 230400 Baud
ConnectivityMale type A plug moulded onto cable
Cable Length1.5m
Drivers (Latest OS)Windows XP, Vista, 7, 8 & MAC OS X supplied on CD & available via the ‘Downloads’ button towards the bottom of this web page
Drivers (Legacy OS)



Contact Actisense for full details of the legacy OS versions supported: support@actisense.com



Mechanical
Housing Material LidPolycarbonate
Housing Material BaseFlame retardent ABS
Weight NGW-1-ISO & ISO-AIS220g
Weight NGW-1-USB210g
Weight NGW-1-STNG



260g



Approvals and Certifications
Fully NMEA 2000 Certified
Meets all IEC 61162-1 & 61162-2 requirements
Meets all IEC 61162-3 requirements
EMCIEC 60945 (sections 9, 10 & 11.2)
Environmental ProtectionIP54
Operating Temperature-20°C to +55°C
Storage Temperature-30°C to +70°C
Recommended Humidity0 – 93% RH
Guarantee3 years
  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allow NMEA 0183 devices to receive vital NMEA 2000 data
  • Configure using Toolkit

NETWORK DIAGRAM

Convert between NMEA 0183 and NMEA 2000 with the NGW-1



NGW-1 Normal LED Bevahiour



Case Study – Updates to NGW-1 and EMU-1

Actisense is dedicated to providing up-to-date software and resources for our products. Here are some useful tools and documentation to help you make the most of your product:



FAQ’s

Here are some Frequently Asked Questions about the NGW-1.

Need more help? Visit our Support Centre or Contact Us.
