Building an NMEA 2000 network from scratch with Scouting Admiraal de Ruyter

Scouting Admiraal de Ruyter are a scouting group in Krimpen aan de Leek, near Rotterdam in the Netherlands. The group have ‘Lelievletten’, steel sailing and rowing boats which are used by children in summer camps across the Netherlands. Jordy from Scouting Admiraal approached us when they were building a new tugboat.

Due to the continuing success with their involvement in the National Regatta and the lessons they hold at river ‘de Lek’, they needed to expand from their existing SKLUA tugboat to accommodate the growth. In 2017 they started building their new tugboat.

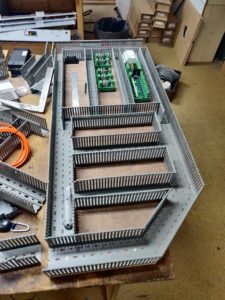

By the end of the year Scouting Admiraal de Ruyter had started the steel construction, at which point they started to outfit the tugboat with the required devices to improve communication and visibility on the water.

Their on-board system consists of NMEA 0183 and NMEA 2000 devices, including a depth sounder, chart plotter and AIS. Due to NMEA 0183 and NMEA 2000 devices utilising different protocols and data formats, the data requires conversion so it can be used by all required instruments.

This is where we come in, by offering simple and cost-effective solutions to make Scouting Admiraals installation as stress-free as possible.

The vessel needed an NMEA 2000 network installed to allow the MFD to operate and receive data. For this to happen, we sent the Scouting Admiraal team a selection of NMEA 2000 cables, connectors and 2 terminators along with an MPT-2 Power Insertion Tee. This range of products enables a complete NMEA 2000 network to be installed, with space and options for expansion in future.

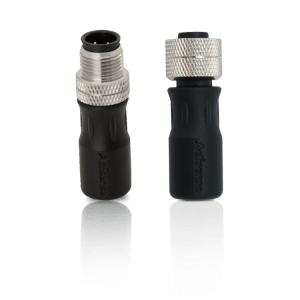

A2K-MPT-2 NMEA 2000 Micro T Piece A2K TER A2K 4WT - NMEA 2000 4 way T-piece A2K T MFF - NMEA 2000 T-piece

A2K TDC - NMEA 2000 Drop Cable

Their system’s depth sounder and AIS are both NMEA 0183 devices, meaning that our NGW-1 NMEA 0183 / 2000 Bi-Directional conversion gateways are required to get this data onto the NMEA 2000 network. We provided 2 NGW-1s, one configured at 4800 baud for the depth data, and the other an NGW-1-AIS at 38400 baud.

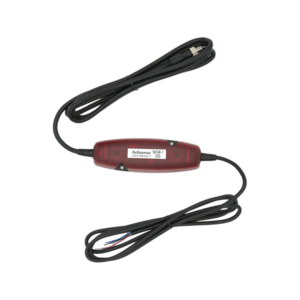

NGW-1-ISO NMEA 2000 Gateway

The converted NMEA 0183 data is then output by the NGW-1 as NMEA 2000 PGNs, for reception and display on the MFD. Using this method, the installation and set-up process is straight forward, where the only requirements are to wire the NGW-1 into the NMEA 0183 talker and check the configuration to ensure all necessary PGNs are being output.
